Heat Resistant Overhead Conveyor Chain System X348 X458 X678 For Material Handling

Product Categories
Chongqing Haodong Technology Co., Ltd.
Contact Now

Heat Resistant Overhead Conveyor Chain System X348 X458 X678 For Material Handling

Model Number : X348

Place of Origin : China

MOQ : 100 meter

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 5000m/month

Delivery Time : 5~15 workdays

Packaging Details : Wooden box, size is as customer's qty.

Chain's catastrophic pull force : 110KN~400KN

Charactor : Heat resistant

Suspension Spacing : 76.2mm~160mm

Chain's Weight : 2.8KG~5.6KG

Single-span weight : 150KG~500KG

Working temprature : 300 ℃

Application : workshops continual conveying, material handling

Condition : New

Voltage : 220/380V

Structure : Chain Conveyor

Power(w) : As requited

Type : Roller Chain

Warranty : 1 Year

Feature : Simple Operation,Easy to maintenance,Anti-Corrosion,Smooth Running,high efficient

Usage : Conveying products,Workshops Continual Conveying,Material Transimission,Paint/fuel rod/cement

Product Name : Heat Resistant Overhead Conveyor Chain System X348 X458 X678 For Material Handling

Contact Now

Heat Resistant Overhead Conveyor Chain System X348 X458 X678 For Material Handling

This model has a good space conveyor, wide scope, the work piece can continuous operation at high temperature bake, harmful gas area, spray booth.

The machine has low power consumption, low maintenance costs, durability, low noise, easy to operate.

Specification of Heat Resistant Overhead Conveyor Chain System X348 X458 X678 For Material Handling

Chain X348 X458 X678
Separation of suspenison T=76.2mm T=100mm T=160mm
Chain's catastrophic pull force 110KN 220KN 400KN
carriage limite load (kg) 300 500 800
Carriage allowable load 150 250 500
Track I 10 / I 12 I 12 / I 14 I 14 / I 16
Minimum horizontal radius R305 R317 R404
Minimum vertical bending R1500 R2000 R3150

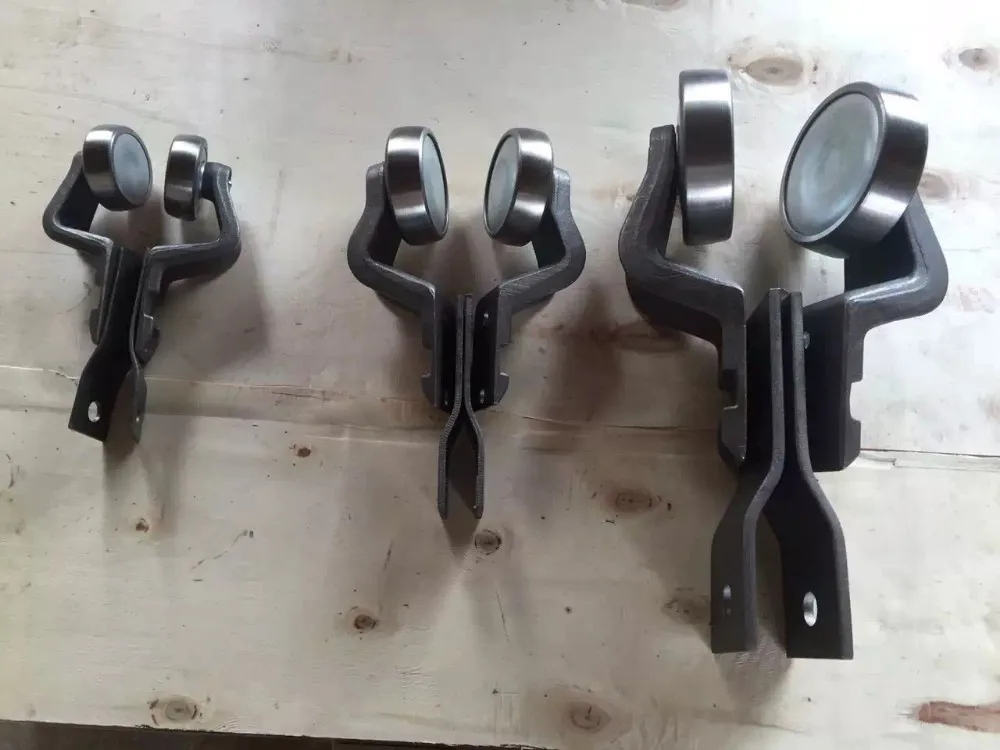

Heat Resistant Overhead Conveyor Chain System X348 X458 X678 For Material Handling

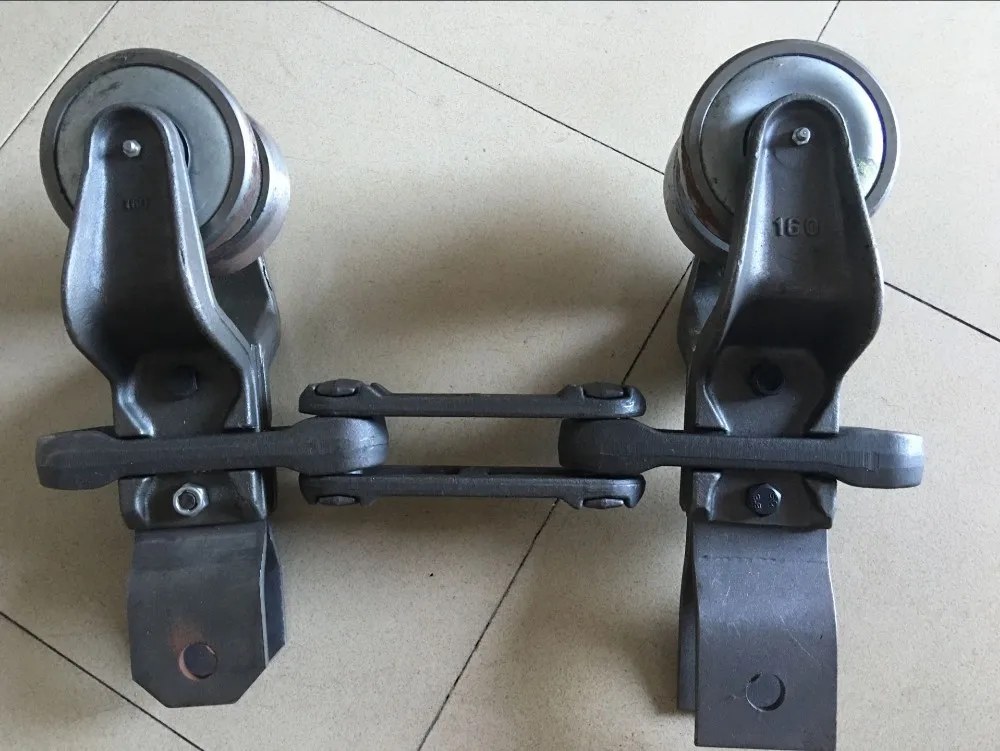

Heat Resistant Overhead Conveyor Chain System X348 X458 X678 For Material Handling

Application

I-beam overhead conveyor chain is close-loop continual conveying equipment widely applied for continual convey of various industrial work pieces,

such as surface treatment, powder coating, paint spraying, drying, oven, cooling room and plaing the finished products off the line, furniture factories, bicycle plants,electronic products factory, hardware factory.

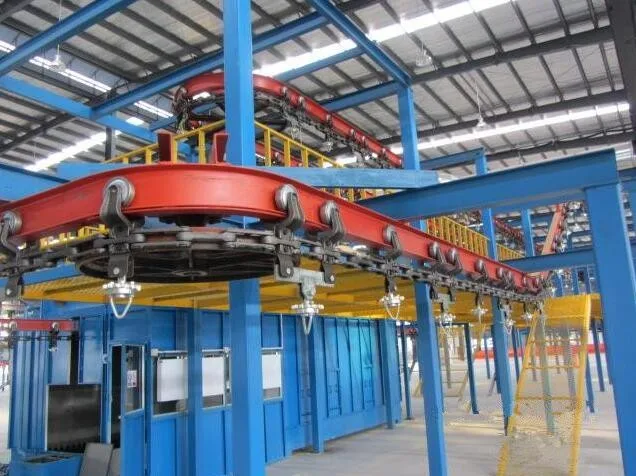

Application of Heat Resistant Overhead Conveyor Chain System X348 X458 X678 For Material Handling

Heat Resistant Overhead Conveyor Chain System X348 X458 X678 For Material Handling
